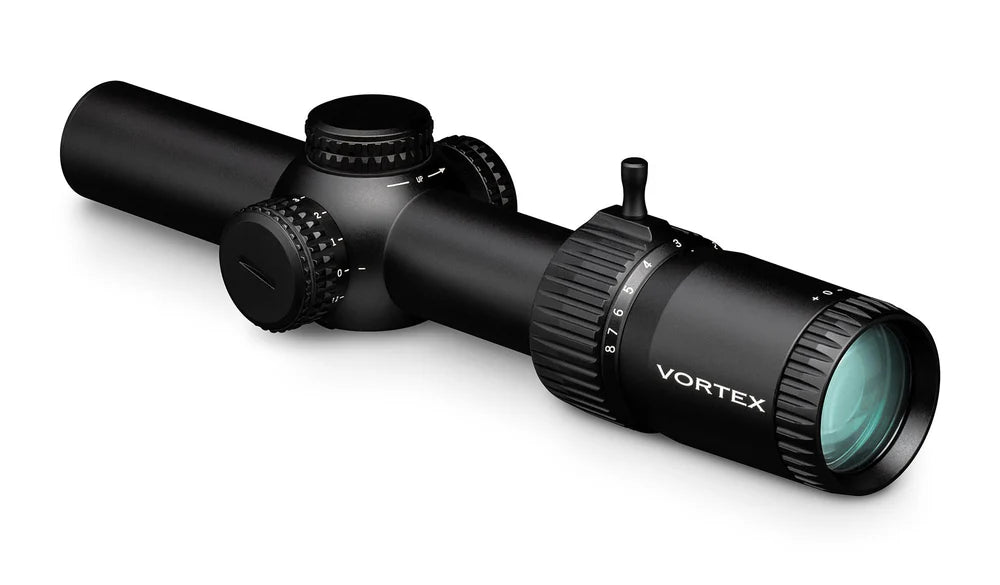

Strike Eagle 1-8x24 AR

Optimize the versatility and quick-handling attributes of your AR with the redesigned Strike Eagle. A true 1x on the low end, Strike Eagle zooms to let shooters rapidly engage targets near and far, and an AR-BDC3 reticle aids in rapid shooting while providing holdover and ranging references from 0-600 yards. Plus, with a thread-in throw lever, you’ll be on target even faster, shot after shot.

OPTICAL FEATURES

Illuminated Reticle Provides precise aiming under low-light conditions

Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

CONSTRUCTION FEATURES

ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

Shockproof Rugged construction withstands recoil and impact.

Waterproof - IPX7 Designed to meet IPX7 waterproofing standards.

Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.

Tube Size 30 mm diameter provides maximized internal adjustment and strength.

Matte Anodized Finish Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.

Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

CONVENIENCE FEATURES

Fast Focus Eyepiece Allows quick and easy reticle focusing.

Throw Lever The included throw lever can be installed for quick and easy magnification adjustments.

RETICLE

 AR-BDC3 RETICLE

The illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of common 5.56 loads out of an AR-15. The 1 MOA center dot provides a precise point of aim while the surrounding 18 MOA horseshoe gets your eye into the center faster for rapid target acquisition, and the BDC keeps you on target out to 650 yards.

SPECIFICATIONS

Magnification 1-8x

Objective Lens Diameter 24 mm

Eye Relief 3.5 inches

Field of View 109 -14.4 ft @100 yds

Tube Size 30 mm

Turret Style Low Capped

Adjustment Graduation 1/2 MOA

Travel Per Rotation 44 MOA

Max Elevation Adjustment 140 MOA

Max Windage Adjustment 140 MOA

Parallax Setting Fixed @100 yds

Length - 25.4 cm / 10 inches
Weight - 467 grams / 16.5 ounces

All Vortex Products bought from Extravision are covered by the Australian Vortex VIP Warranty
Our warranty is about you, not us. It's about taking care of you after the sale.
The VIP stands for a Very Important Promise to you, our customers. We will repair or replace your Vortex product in the event it becomes damaged or defective—at no charge to you other then return post from you to us. It doesn't matter how it happened, whose fault it was, or where you purchased it. You can count on the VIP Warranty for all riflescopes, red dots, rangefinders, binoculars, spotting scopes and monoculars.
•Unlimited Lifetime Warranty
•Fully transferable
•No warranty card to fill out
•No receipt needed to hang on to
If you ever have a problem, no matter the cause, we promise to take care of you.
The VIP warranty does not cover loss, misuse, theft or deliberate damage to the product.
