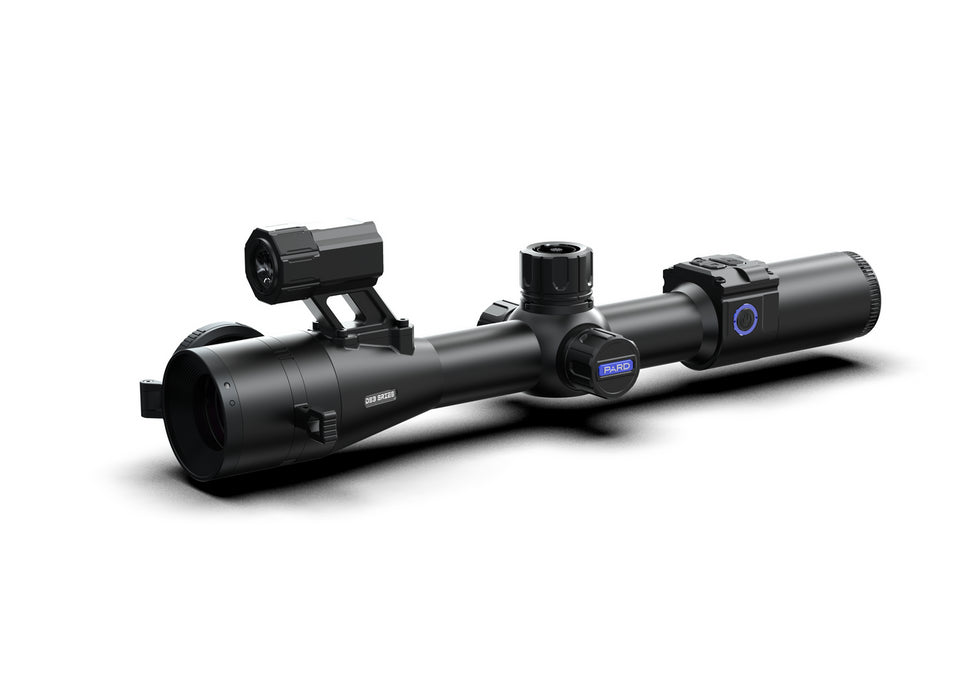

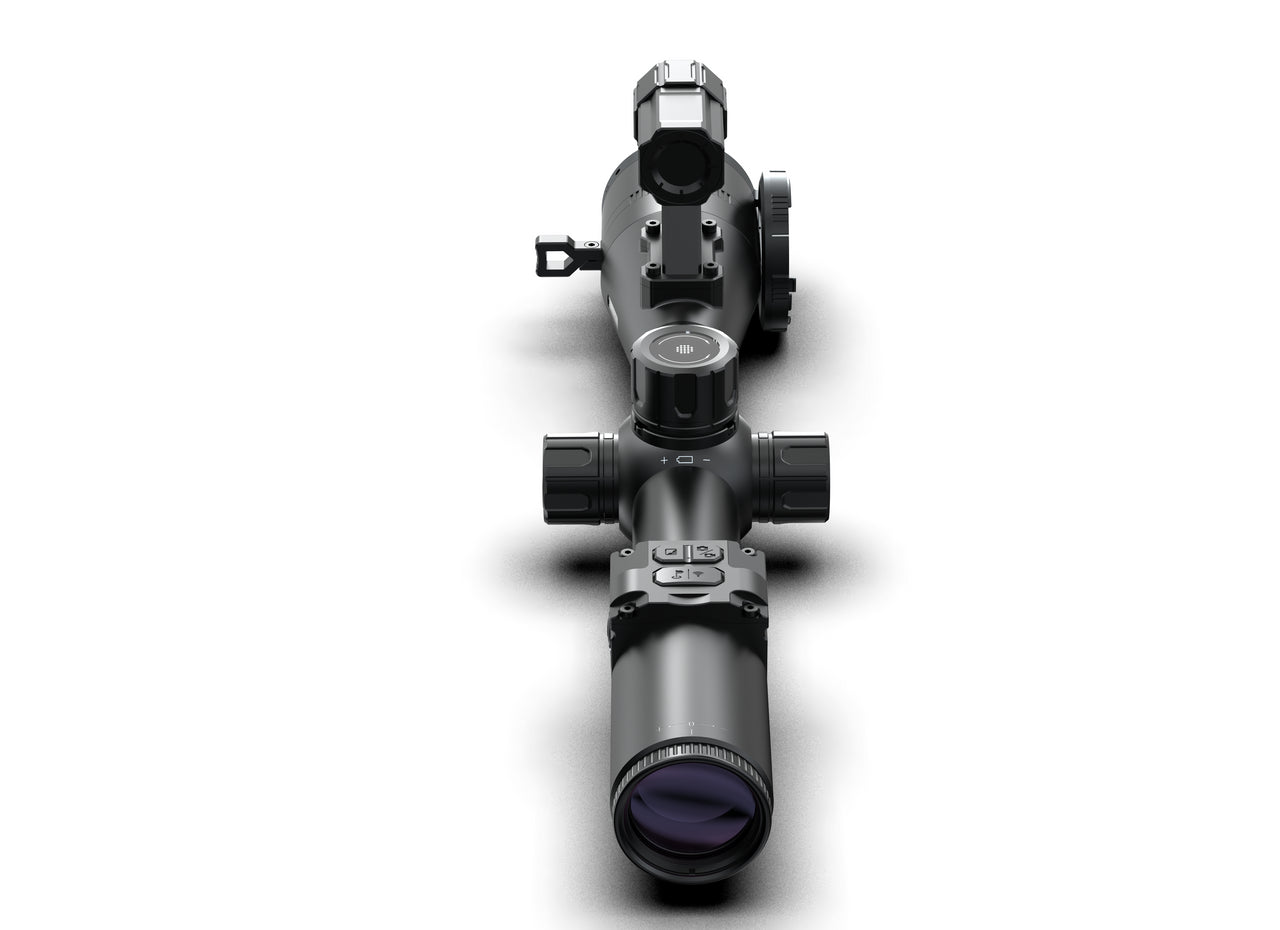

Pard DS35-50LRF/850 Night Vision
Pard DS35-50LRF/850 Night Vision
Regular price
$1,899.00 AUD
Regular price
Sale price
$1,899.00 AUD
Unit price
/
per
The Pard DS35 Series is a newly designed digital night vision riflescope, in the shape of your traditional day scope. The DS35 range includes various choices of focal lengths, IR illuminator wavelengths, as well as the option of an integrated Laser Rangefinder. Starting at 5.6x magnification with 2x digital zoom (up to 11.2x). Every DS35 includes a 2560x1440 high resolution CMOS sensor for day/night viewing from the Pard VLEA image engine.
Key Features;
- "PARD 2K" resolution sensor - Highly Sensitive in Low Light - to 0.001lux
- "PARD VLEA" Improved Image Enhancement
- 1000mtr Integrated Laser Rangefinder (LRF model only)
- Recoil-Activated Video Recording
- Ballistic Calculator
Other Features;
- 2560x1440 CMOS optical sensor
- 850nm IR illuminator (350mtr IR range) - 5 watt
- Gyroscope, Loop recording, Audio recording, Exposure compensation
- Mounts to your rifle with standard 30mm rings
- 1x 18650 removeable battery (+8hrs operating time)
- Micro SD storage for media recording, WiFi connectivity
PARD DS35 Product Specifications;
MODEL | DS35-50 (LRF) | DS35-70 (LRF) |
Optical Sensor | 2560 x 1440 | 2560 x 1440 |
Objective lens | 50mm (TBD) | 70mm (F2.4) |
Magnification, x | 4x - 8x | 5.6x - 11.2x |
Field of view (HxV), degrees | TBD | 3.4° x 3.4° |
Detection range, m | 350 (IR range) | 350 (IR range) |
Sensor | ||
Type | CMOS | CMOS |
Resolution, pixels | 2560 x 1440 | 2560 x 1440 |
Frame rate | 30fps | 30fps |
Optics | | |
Objective lens | 50mm (F2.4) | 70mm (F2.4) |
Magnification, x | 4x - 8x (2x digital) | 5.6x - 11.2x (2x digital) |
Field of view (HxV), degrees | 3.4° x 3.4° | 3.4° x 3.4° |
IR Illuminator | ||
IR Wave length | 850nm or 940nm | 850nm or 940nm |
IR Power, w | 5 | 5 |
IR Detecting distance, m | 350 | 350 |
Display | | |
Resolution, pixels | 800 x 800 IPS LCD | 800 x 800 IPS LCD |
Colour Palettes | Colour / Mono BW / Mono Green / Mono Yellow | Colour / Mono BW / Mono Green / Mono Yellow |
Range Performance | | |
Detection range (person), m | 850nm range: 350m 940nm range: 200m | 850nm range: 350m 940nm range: 200m |
Laser Rangefinder | (LRF optional) | (LRF optional) |
Safety class for laser equipment according to IEC 60825-1:2014 | - | - |
Wavelength, nm | - | - |
Max. measuring range, m | 1000 | 1000 |
Measurement accuracy, m | 1 | 1 |
Min. Measuring Range, m | 3.5 | 3.5 |
Reticle | | |
Picture in Picture | Yes | Yes |
Number of preloaded reticles | 6 | 6 |
Number of Zero Profiles available | white / yellow / green | white / yellow / green |
Wireless Connection | WiFi | WiFi |
Recording | Photo & Video | Photo & Video |
Environmental Characteristics | | |
Degree of protection, IP code (IEC60529) | IP67 | IP67 |
Power Supply | | |
Output voltage, V | 3.7 | 3.7 |
Battery type | 18650 Li-ion | 18650 Li-ion |
Operating time on battery pack (at t=22°C), h * | >8 | >8 |
External power supply, V | - | - |
Connections and Compatibilities | | |
Max. recoil power on firearm | 1000G | 1000G |
Mounting brackets on firearm | 30mm rings | 30mm rings |
Weight & Size | | |
Dimensions, (LxWxH)mm | 350 x 88 x 95 | 350 x 88 x 95 |
Weight, kg | 0.68 | 0.68 |
Warranty | 2 years | 2 years |
Trade Data | | |
SKU (Model #) | DS35-50-850 DS35-50-940 DS35-50-850-LRF DS35-50-940-LRF | DS35-70-850 DS35-70-940 DS35-70-850-LRF DS35-70-940-LRF |
