Nightforce SHV 3-10x42mm MOAR
Nightforce SHV 3-10x42mm MOAR
Couldn't load pickup availability

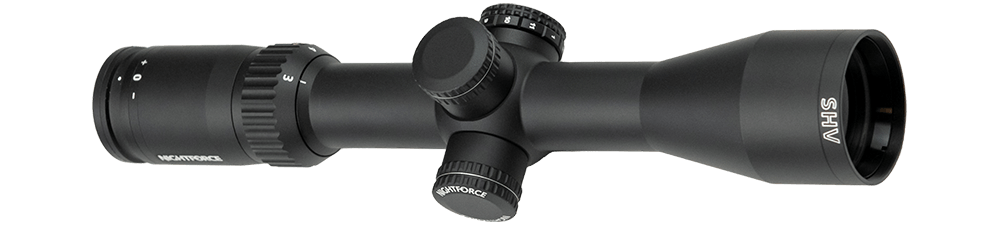

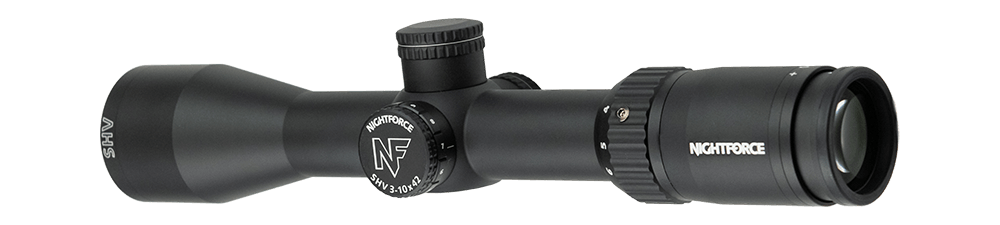

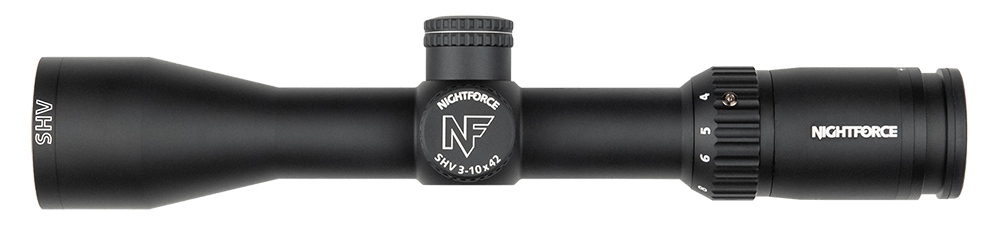

The SHV™ 3-10×42 riflescope is a perfect choice for those wanting value in a small package. The 3-10x magnification range and 42mm objective provide for a practical solution to a wide range of applications from target shooting to big game and varmint hunting.
Offered with a choice of either the Foreceplex™, 4A, or the intelligent MOAR™ reticle; the shooter has the ability to tailor the SHV™ 3-10×42 to their specific shooting application.
| Magnification Range | 3-10x |
|---|---|
| Focal Plane | Second Focal Plane (F2/SFP) |
| Body Tube Diameter | 30mm |
| Overall Length | 11.6 in/295 mm |
| Mounting Length | 5.1 in/130 mm |
| Weight | 22.2 oz/629 g |
| Click Value | .250 MOA |
| Internal Adjustment Range | E: 90 MOA W: 80 MOA |
| Parallax Adjustment | Fixed @ 125 m |
| Eye Relief | 3.5 in/88 mm |
| Field of View @ 100 yd or m | 3x: 34.9 ft/11.6 m 10x: 11 ft/3.7 m |
| Exit Pupil | 3x: 10.7 mm 10x: 4.4 mm |
| Illumination | Analog |
| Elevation Feature | Capped, finger-adjustable |
| Power Throw Lever | Accessory |
Combined with a floating center crosshair, this makes for a reticle extremely fast and easy to use in the field. This reticle features center illumination only, and a 30 MOA scale below center.
The elevation and windage marks can be used for ranging objects when the size of the target is known. Bracket the target from top to bottom or side to side within the marks. Distance to target can then be determined using this formula:
Target size in inches ÷ Image size (moa) x 95.5 = range in yards.
For field expedient ranging inside of 500 yards, a constant of 100 can be used in place of 95.5.
Please note that accurate rangefinding with the MOAR™ reticle can only be accomplished at the power settings shown above.
