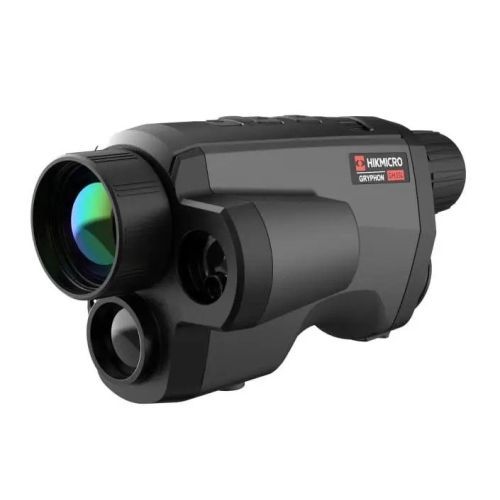

Hikmicro Gryphon GQ35L LRF 640x512
Hikmicro Gryphon GQ35L LRF 640x512
HikMicro designed the Gryphon Thermal Fusion Night Vision Monocular range to be as versatile as possible. The monocular's impressive NETD (Noise Equivalent Temperature Difference) of less than 35 mkv and its Waterproof/Fogproof rating of IP67 are what makes it incredibly versatile, and allows it to be used in even the harshest of conditions - darkness, dust, fog, forest, rain or snow.
The HikMicro Gryphon GQ35L LRF Thermal Night Vision Monocular is the model below the range-topping GQ50L in the Gryphon lineup. In addition to the larger 35mm Lens found in the GH35L, the GQ35L also features an incredibly powerful, 640x512 px IR Sensor for next-level night vision.
You'll be able to truly appreciate the results of this IR detector with the Gryphon's integrated OLED screen, which never fails to deliver exceptional image clarity and vivid contrast in the colours. And with the Gryphon's inbuilt rangefinder, you'll know how far your target is from you at precision of ± 1m for distances greater than 600 metres.
With features you didn't know you needed.
The HikMicro Gryphon includes six colour palettes including Image Fusion, which works like a charm to combine both visible and invisible light - bringing a new perspective to night vision. And with Hot Tracking, the Gryphon makes following your (moving) target easier than ever by displaying its location on the OLED Screen.
Perfect for a range of applications.
The HikMicro Gryphon LRF Thermal Fusion Night Vision Monocular is an excellent choice for a range of applications. Whether you're a hunter, hiker or first-responder: no matter what you need night vision for, the Gryphon will light up the darkness.
HikMicro T-Vision
Download Hikmicro T-Vision to login to your thermal imaging device via hotspot to gain control of your device. With the T-Vision mobile application, you can configure, live view, capture photos and videos with ease, and adjust your settings to fit your viewing requirements: day or night. |
Full Specifications
Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
Max. Resolution | 640x512 px |
Pixel Interval | 12 µm |
NETD | less than 35 mK |
Focal Length of Lens | 35mm |
Field of View | 10.97° × 8.82° |
Aperture | f/1.0 |
Eye Relief | 19.5 mm |
Magnification | 3.35 x |
Digital Zoom | 1x, 2x, 4x, 8x |
Display | 0.39 inch, OLED, 1024 x 768 |
Palettes | Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion |
Hot Tracking | Yes |
Wi-Fi Hotspot | Yes |
Detection Range | 1800 m |
Built-In Memory | 16 GB |
Laser Rangefinder | Class 1 Safety Class; 905 nm Wavelength, 600 m Maximum Measuring Distance (Accuracy ± 1 m) |
Video Recording and Image Capturing Capability | Yes |
Battery | 1 x 18650 Battery with a Runtime of 5 Hours |
Working Temperature | -30 °C to 55 °C |
Waterproof / Fogproof | Yes (IP67) |
Dimensions | 87.2 mm × 73.3 mm × 161.5 mm |
Weight | 510 g |
