Element Optics XT Mounts
Element Optics XT Mounts
Couldn't load pickup availability
Your rifle system is only as strong as its weakest point, and with our innovative mounts, you can ensure a robust and reliable setup. These mounts provide a lightweight and affordable scope mounting solution without compromising on build quality. Designed for durability and aesthetics, they seamlessly complement the sleekest rifle configurations.

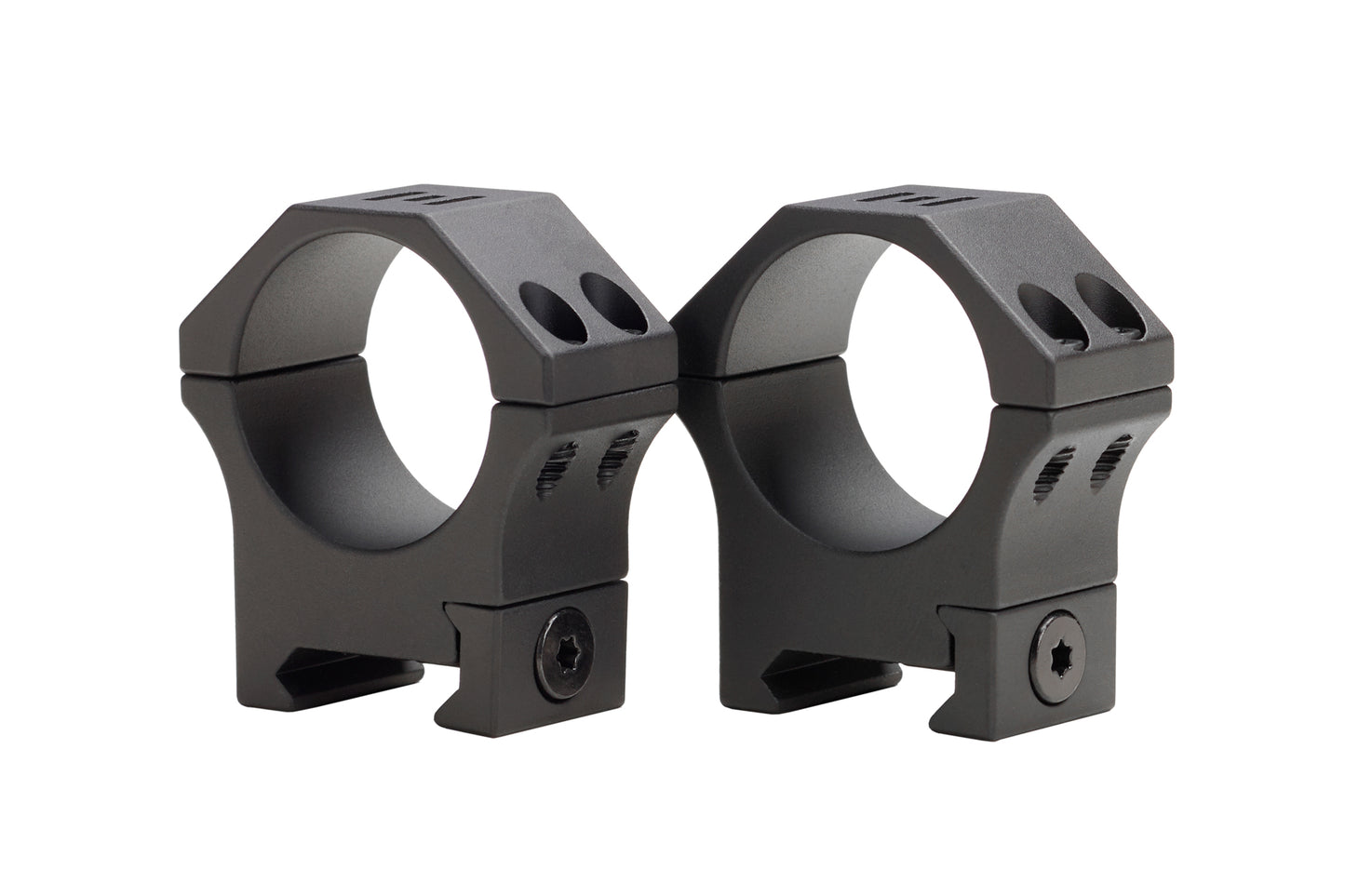

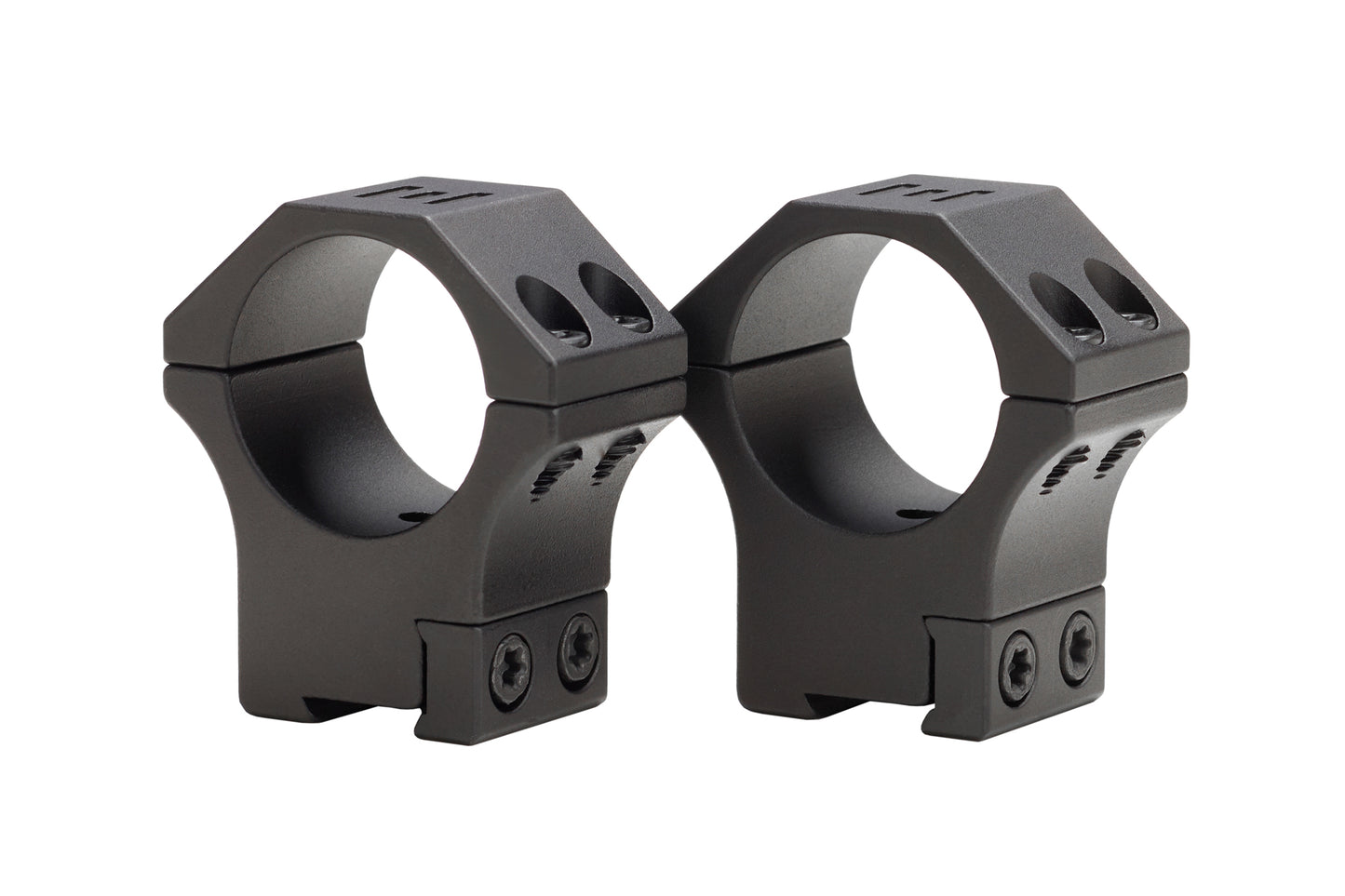

Available in both dovetail and picatinny styles, these mounts cater to various preferences and needs, accommodating 30mm and 1” body tubes. With multiple height options, you can customize your setup for optimal performance and comfort.
To achieve the best results, it’s essential to adhere to specified torque guidelines. Over-torquing can result in temporary or permanent damage to your riflescope body tube and internals. Detailed specifications can be found in the “specs” tab below.
| MODEL | 1” Dovetail L | 1” Dovetail M | 1” Dovetail H | 30mm Dovetail M | 30mm Dovetail H | 30mm Picatinny L | 30mm Picatinny M | 30mm Picatinny LH |
| HEIGHT | 22.7mm (0.97”) | 26.7mm (1.05”) | 31.7mm (1.25”) | 27.2mm (1.07”) | 32.2mm (1.27”) | 21.9mm (0.86”) | 25mm (0.98”) | 28.9mm (1.14”) |
| WEIGHT (PAIR) | 72.2g (2.55oz) | 83.6g (2.95oz) | 96.2g (3.39oz) | 82.8g (2.92oz) | 96g (3.39oz) | 86.2g (3.0oz) | 98g (3.45oz) | 110g (3.88oz) |
| MATERIAL | 6061 ALUMINUM | |||||||
| MOUNTS TO | PICATINNY | DOVETAIL | |||||||
| TOOLS REQUIRED | T15 TORX | |||||||
| MAX TORQUE (RINGS) | 18 IN-LBS (2.0NM) | |||||||
| MAX TORQUE (BASE) | 35 IN-LBS (4.0NM) | |||||||
Elevate your shooting experience with mounts that blend strength, style, and precision. Get ready to enhance your rifle’s performance with these essential accessories.
