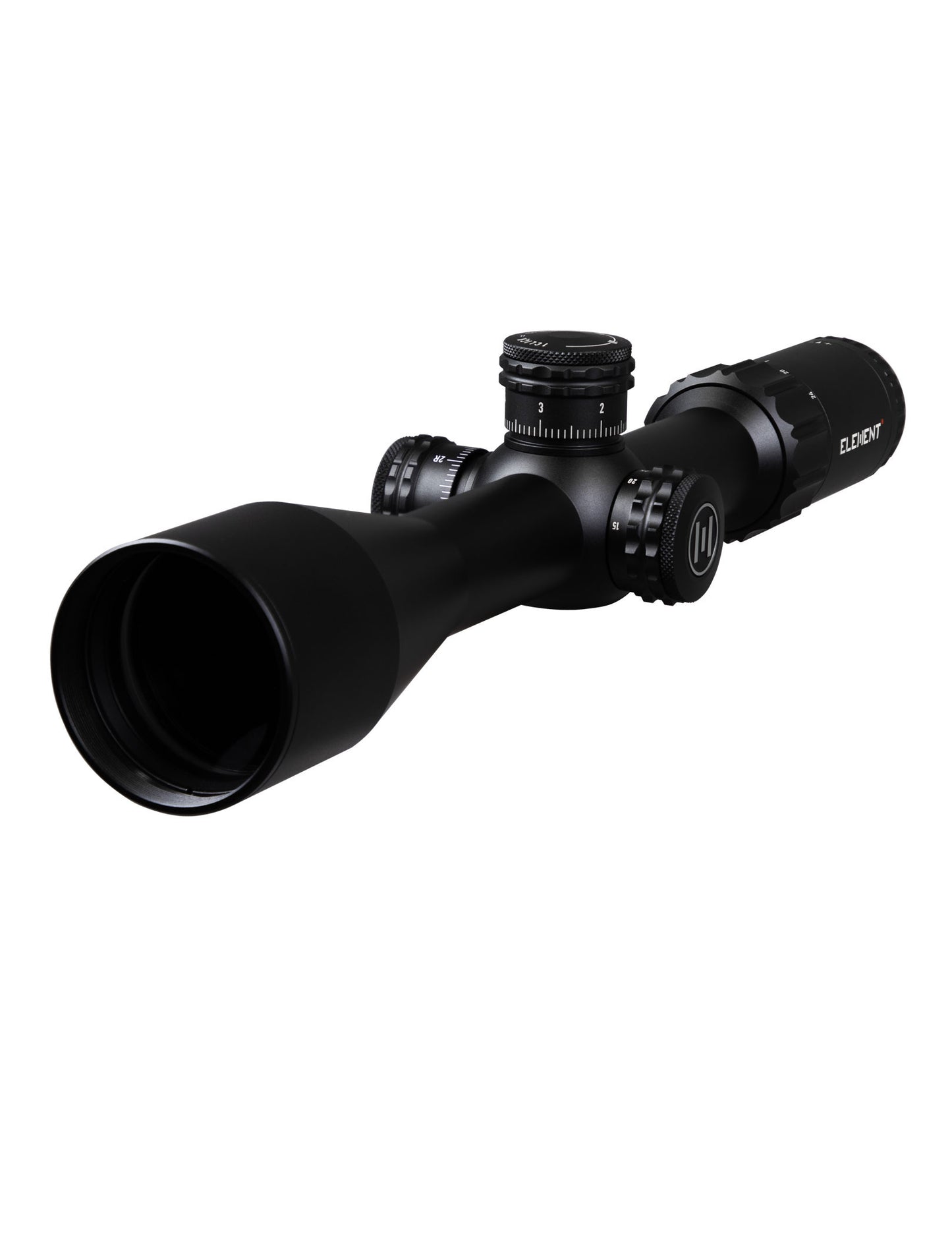

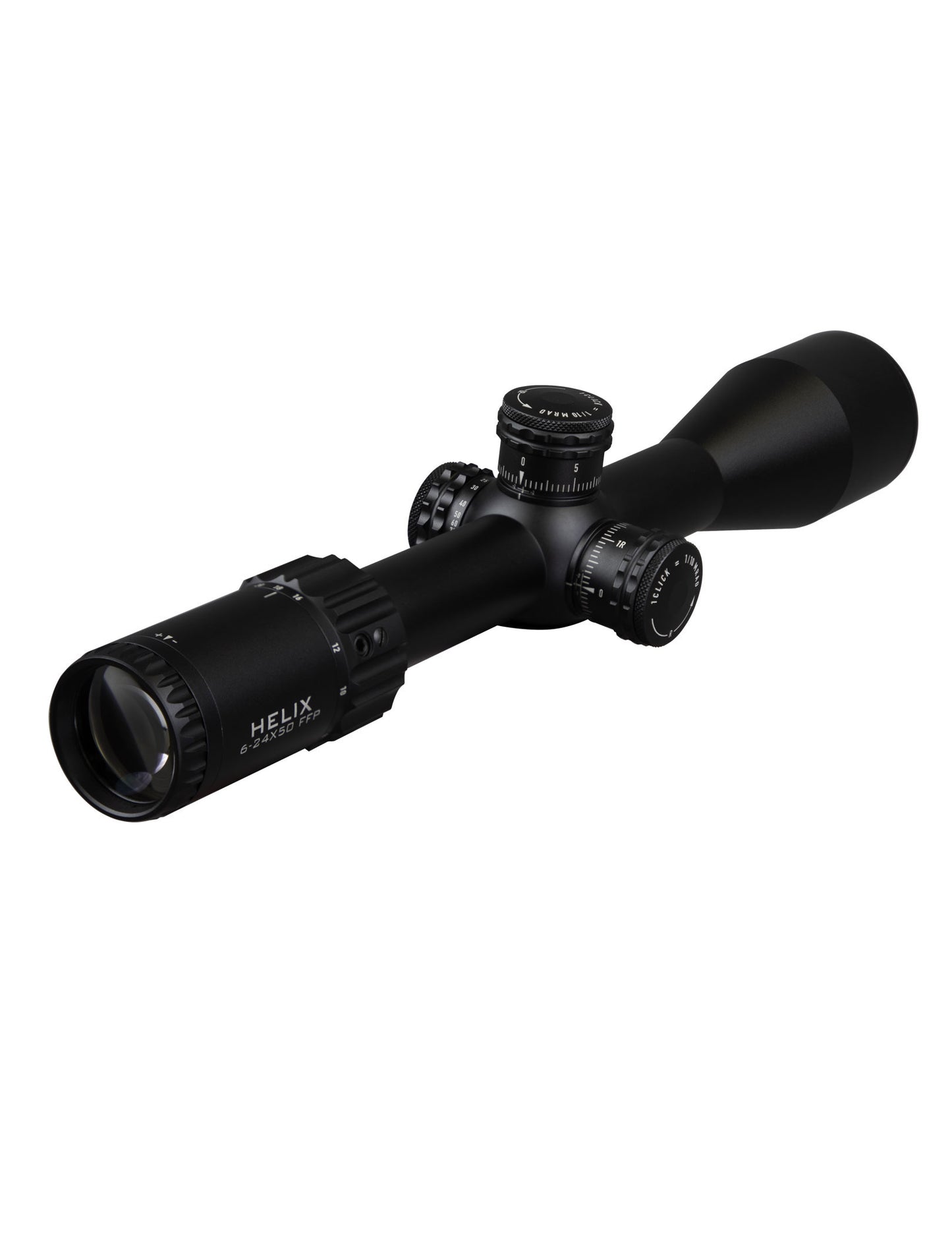

Element Helix 6-24x50 MOA APR-1C FFP
Element Helix 6-24x50 MOA APR-1C FFP
We’ve designed the HELIX in a way that puts the important things first: clear glass, smart reticles, innovative features and a turret system superior to other products in the same price class. The turret system has been upgraded from your stock-standard sporting optic to feature stainless steel internals for resistance against wear-and-tear when dialling regularly – something that modern shooting disciplines require. The tool-free turrets and zero-stop mechanism give you high end features without breaking the bank, and the First Focal Plane reticle ensures precise reticle calibration at all magnifications. We’ve introduced quality control checks to give you peace of mind when taking that 1000 yard shot, and if something goes wrong, our Platinum Lifetime Warranty has you covered!
Available reticles:
– MRAD APR-2D 6-24 FFP - View reticle info
– MRAD APR-1C 6-24 FFP - View reticle info
– MOA APR-2D 6-24 FFP - View reticle info
– MOA APR-1C 6-24 FFP - View reticle info
Features:
- 30mm Main Body Tube
- Compact, Lightweight design
- First Focal Plane Reticle
- Aircraft Grade Aluminium
- Side Parallax: 10yds-Infinity
- Fully Multi-Coated Lenses
- Tool-free Resettable Turrets with 6 MRAD / 15 MOA per Revolution
- Hard Mechanical Zero-Stop
- Removable Magnification Throw Lever
- Waterproof, Fogproof, Shockproof & Nitrogen Purged
- Sunshade, Lens Cloth & Rubber Lens Caps included
MAGNIFICATION RANGE | 6-24x |
TUBE DIAMETER | 30mm |
OBJECTIVE LENS DIAMETER | 50mm |
EXIT PUPIL | 9.1-2.2mm |
EYE RELIEF | 3.7 – 4 Inches |
FIELD OF VIEW | @100yds: 18.3-4.6 ft |
CLICK VALUE | 1/4 MOA (15 MOA / REV) | 1/10 MRAD (6 MRAD / REV) |
ELEVATION ADJUSTMENT RANGE | 65 MOA | 18.9 MRAD |
WINDAGE ADJUSTMENT RANGE | 40 MOA | 11.6 MRAD |
MINIMUM PARALLAX | 10 YDS | 10 METERS |
LENGTH | 14.3 Inches | 363 mm |
WEIGHT | 26oz | 737gr |
